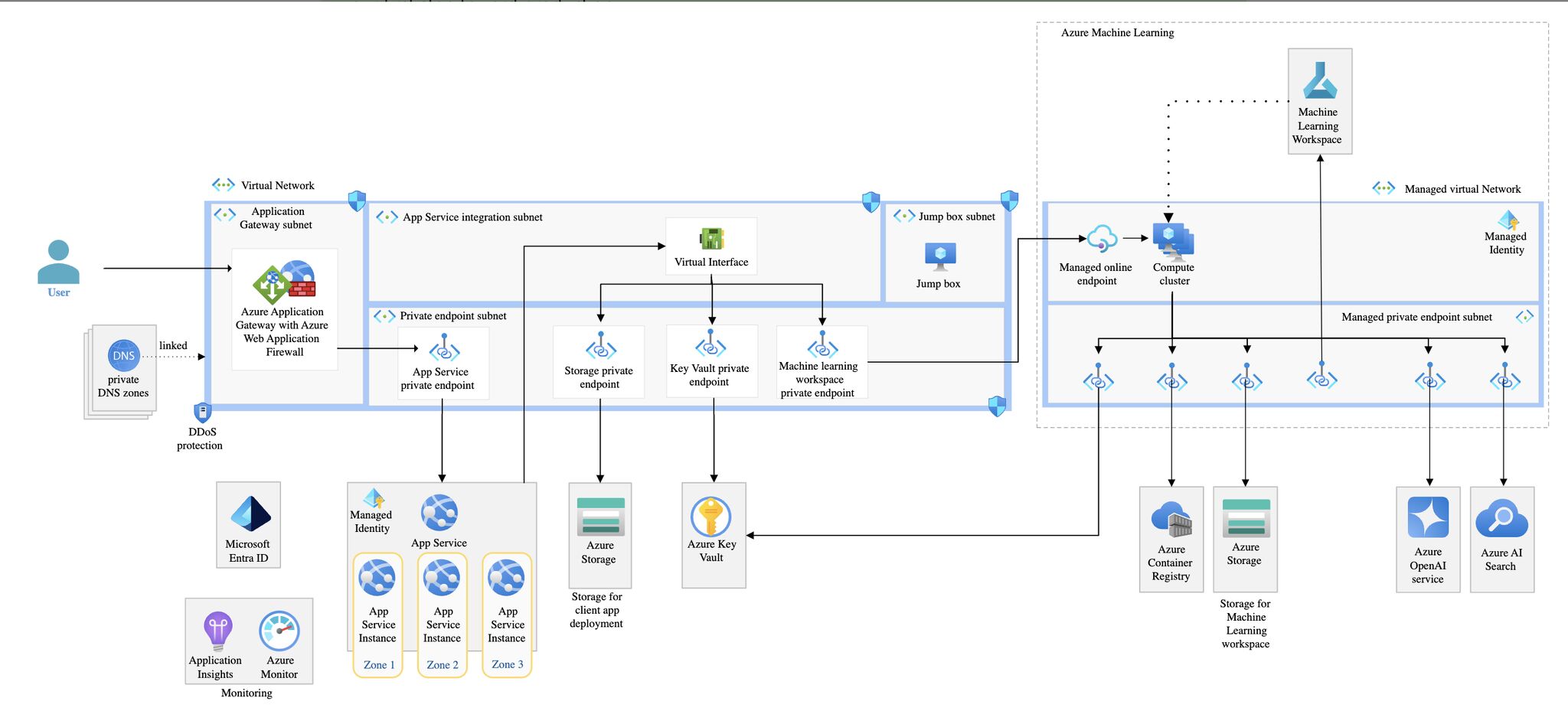

How to Build and Deploy the Baseline OpenAI End-to-End Chat Reference Architecture on Azure?

Leverage Azure’s services to create a secure, scalable, and highly available web app with integrated ML.

User and DNS

  • The end-user accesses the web app via the internet.

  • DNS ensures resources can communicate using domain names, simplifying management and increasing flexibility.

Azure App Gtw & WAF:

  • App Gtw acts as a reverse proxy and provides load balancing.

  • WAF protects against web vulnerabilities like SQL injection and cross-site scripting.

VNet

  • App Gtw Subnet for hosting the Application Gateway.

  • App Service Integration Subnet for secure integration with the VNet.

  • Private Endpoint Subnet keeps traffic within the Azure backbone network.

  • Jump Box Subnet provides a controlled entry point into the VNet for security.

App Service & Identity

  • App Service Instances are distributed across availability zones for high availability and fault tolerance.

  • Managed Identity offers an automatically managed identity in AAD for resource access.

Data Storage and Management

  • Key Vault Private Endpoint securely stores and accesses sensitive information like API keys, passwords, certificates, and cryptographic keys.

  • Storage Private Endpoint ensures that the storage account is accessed securely over a private IP address within the VNet, protecting the data from public exposure.

  • Storage for ML Workspace stores datasets, models, and other artifacts required by the MLW.

ML & AI

  • MLW allows data scientists and developers to build, train, and deploy models.

  • Compute Cluster can automatically scale up or down based on the workload.

  • Managed Online Endpoint enables real-time inferencing by deploying ML models as web services.

  • MLW Private Endpoint ensures secure access to the MLW, preventing unauthorized access over the internet.

Azure Container Registry simplifies the process of managing container images and integrates with other Azure services like Kubernetes.

Azure OpenAI Service provides access to OpenAI’s, enabling the application to leverage advanced NLP & other AI capabilities.

Azure AI Search implements AI-driven search capabilities within the application, enhancing the user experience by providing intelligent search results.

Monitoring and Management

  • Application Insights monitors the performance and usage of the application.

  • Azure Monitor provides comprehensive monitoring for applications, infrastructure, and networks

DDoS Protection protects the application from DDoS attacks, ensuring availability and reliability even under attack.

Microsoft Entra ID provides SSO, MFA, and conditional access to protect against identity-driven security threats.

Networking

  • Virtual Interface connects various subnets within the VNet, facilitating communication between different resources such as the App Service, storage accounts, and machine learning components.
